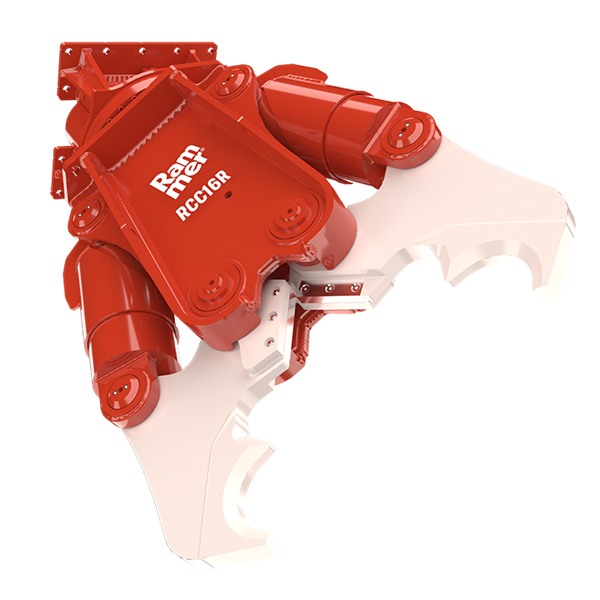

Rammer Cutter Crusher - RCC16R

The Rammer RCC16R Cutter-Crusher features two powerful cylinders and 360° rotation, making it the ideal choice for both standard and high reach demolition. Applications: Primary Demolition, Material Handling, Secondary Demolition and
Structural Steel.

SPECIFICATIONS:
Weight
Max. jaw opening
Max. operating pressure
Max pressure for hydraulic rotation
Oil flow range
Oil flow for hydraulic rotation
Cutting blade length
Pressure line connection (IN)
Return line connection (OUT)
Connections, rotation
Optimum oil temperature
Allowed oil temperate range
Optimum oil viscosity at operating temperature
Allowed viscosity range
Carrier weight, range *1
1600 kg 3530 lb
825 mm 32.48 in
350 bar 5075 psi
100 bar 1450 psi
100 - 150 l/min 26.4 - 39.6 gal/min
40 l/min 10.6 gal/min
160 mm 6.30 in
SAE 6000 psi 3/4"
SAE 6000 psi 3/4"
1/2" BSP
40 - 60 °C 104 - 140 °F
-20 - 80 °C -4 - 176 °F
30 - 60 cSt
20 - 1000 cSt
14 - 18 t 30900 lb
Additional information:

*1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice, 2016-11-08 12:00 by sdavis

Product Description

The Rammer RCC16R Cutter-Crusher features two powerful cylinders and 360° rotation, making it the ideal choice for both standard and high reach demolition. Applications: Primary Demolition, Material Handling, Secondary Demolition and
Structural Steel.
