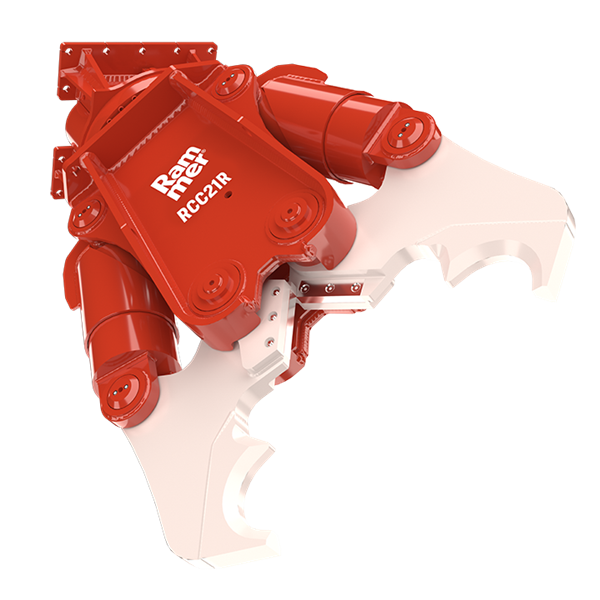

RCC21R Cutter Crusher

The Rammer RCC21R Cutter-Crusher features two powerful cylinders and 360° rotation, making it the ideal choice for both standard and high reach demolition.

The Rammer RCC21R Cutter-Crusher features two powerful cylinders and 360° rotation, making it the ideal choice for both standard and high reach demolition. Applications: Primary Demolition, Material Handling, Secondary Demolition and
Structural Steel.

Features

  • 360° rotation
  • Reinforced structure
  • Speed valve
  • Hydraulic cylinder Shielding
SPECIFICATIONS:
Weight
Max. jaw opening
Max. operating pressure
Max pressure for hydraulic rotation
Oil flow range
Oil flow for hydraulic rotation
Cutting blade length
Pressure line connection (IN)
Return line connection (OUT)
Connections, rotation
Optimum oil temperature
Allowed oil temperature range
Optimum oil viscosity at operating temperature
Allowed viscosity range
Carrier weight, range *1
30900 kg 4630 lb
985 mm 38.78 in
350 bar 5075 psi
150 bar 2175 psi
180 - 220 l/min 47.6 - 58.1 gal/min
40 l/min 10.6 gal/min
175 mm 6.89 in
SAE 6000 psi 1"
SAE 6000 psi 1"
1/2" BSP
40 - 60 °C 104 - 140 °F
-20 - 80 °C -4 - 176 °F
30 - 60 cSt
20 - 1000 cSt
18 - 24 t 39700 lb
Additional information:

*1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice, 2016-11-08 12:05 by sdavis

Product Description

The Rammer RCC21R Cutter-Crusher features two powerful cylinders and 360° rotation, making it the ideal choice for both standard and high reach demolition. Applications: Primary Demolition, Material Handling, Secondary Demolition and
Structural Steel.
